모든 코드 ↓
더보기
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace _022_dClock
{
public partial class Form1 : Form
{
//필드(멤버변수)
//private 생략되어있음
Graphics g;//다른함수에도 사용하게
bool aClockFlag = true;//아날로그 시계
Point center;
int radius;
int hourHand; //시침의 길이
int minHand; //분침길이
int secHand; //시침
//const는 상수라 바꿀수 없는값 바꾸려하면 오류
const int clientsSize = 300; //client의 크기
const int clockSize = 200; //시계의 크기
Font fDate; //날짜 폰트
Font fTime; //시간 폰트
Brush bDate;
Brush bTime;
Point panelCenter;
public Form1()
{
InitializeComponent();
this.ClientSize = new Size(clientsSize, clockSize + menuStrip1.Height);
this.Text = "My Form Clock";
//pancel 지정
panel1.BackColor = Color.WhiteSmoke;
panel1.Width = clockSize + 1;
panel1.Height = clockSize + 1;
panel1.Location = new Point(clientsSize / 2-clockSize / 2, clientsSize / 2 - clockSize / 2 + menuStrip1.Height);
g = panel1.CreateGraphics(); //pancel에서 그려주는 그래픽 객체
aClockSetting();
dClockSetting();
timerSetting();
}
private void aClockSetting()
{//아날로그 시계 세팅
center = new Point(clientsSize / 2, clockSize / 2);
radius = clockSize / 2;
hourHand = (int)(radius * 0.45);
minHand = (int)(radius * 0.55);
secHand = (int)(radius * 0.65);
}
private void dClockSetting()
{//디지털 시계 세팅
fDate = new Font("맑은 고딕",12,FontStyle.Bold);
fTime = new Font("맑은 고딕", 32, FontStyle.Bold|FontStyle.Italic);
bDate = Brushes.SkyBlue;
bTime = Brushes.Blue;
}
private void timerSetting()
{//시계설정
Timer t = new Timer();
t.Enabled = true;
t.Interval = 1000;
t.Tick += T_tick;
}
private void T_tick(object sender, EventArgs e)
{
DateTime c = DateTime.Now;
panel1.Refresh();
if(aClockFlag == true){//아날로그라면?
DrawClockFace();
double radHr = (c.Hour % 12 + c.Minute / 60.0) * 30 * Math.PI / 180;
double radMin = (c.Minute + c.Second / 60.0) * 60.0 * 6 * Math.PI / 180;
double radSec = c.Second * 6 * Math.PI / 180;
DrawHands(radHr, radMin, radSec);
}
else {//디지털이라면?
string date = DateTime.Today.ToString("D");
string time = string.Format("{0:D2}:{1:D2}:{2:D2}", c.Hour, c.Minute, c.Second);
g.DrawString(date, fDate, bDate, new Point(10, 70));
g.DrawString(time, fDate, bDate, new Point(10, 100));
}
}
private void DrawClockFace()
{
const int penWidth = 30;
Pen p = new Pen(Brushes.LightSteelBlue,penWidth);
g.DrawEllipse(p, penWidth / 2, penWidth / 2, clockSize - penWidth, clockSize - penWidth);
}
private void DrawHands(double radHr, double radMin, double radSec)
{
}
}
}
1. 디자인 설정

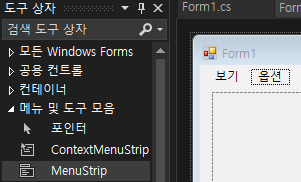

도구상자에서 MenuStrip 추가

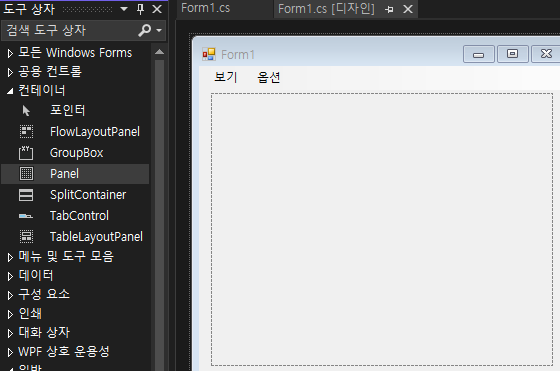

도구상자에서 Panel 추가
public partial class Form1 : Form
{
//필드(멤버변수)
//private 생략되어있음
필드에 먼저 여러 함수와 객체 지정
Graphics g;
아날로그 시계를 그릴 Grphics 객체
bool aClockFlag = false;//아날로그 시계
aClockFlag bool함수가 fales면 디지털 시계 true면 아날로그 시계를 그려줄 bool 함수
Point center;
int radius;
int hourHand; //시침의 길이
int minHand; //분침길이
int secHand; //시침
Point center는 중심점
radius는 반지름
등등 함수지정
const int clientsSize = 300; //client의 크기
const int clockSize = 200; //시계의 크기
const 상수를 지정해주면 그 값은 바뀔수 없다
Font fDate; //날짜 폰트
Font fTime; //시간 폰트
Brush bDate;
Brush bTime;
Font 클래스는 폰트설정
Brush 클래스는 글자의 색깔 설정
Point panelCenter;
panel의 중심 Point
public Form1()
{
InitializeComponent();
this.ClientSize = new Size(clientsSize, clockSize + menuStrip1.Height);
this.Text = "My Form Clock";
클라이언트 속성 지정
프로그램 상단 문구 설정
//panel 지정
panel1.BackColor = Color.WhiteSmoke;
panel1.Width = clockSize + 1;
panel1.Height = clockSize + 1;
panel1.Location = new Point(clientsSize / 2-clockSize / 2, clientsSize / 2 - clockSize / 2 + menuStrip1.Height);
panel1 설정
panel1의 배경색은 Whitesmoke
너비와 높이는 clockSize에 + 1
위치지정
g = panel1.CreateGraphics(); //pancel에서 그려주는 그래픽 객체
aClockSetting();
dClockSetting();
timerSetting();
panel1에서 그려질 그래픽 객체
aClockSetting 메소드
private void aClockSetting()
{//아날로그 시계 세팅
center = new Point(clientsSize / 2, clockSize / 2);
radius = clockSize / 2;
hourHand = (int)(radius * 0.45);
minHand = (int)(radius * 0.55);
secHand = (int)(radius * 0.65);
}
아날로그 시계에서의 시침 분침 초침 길이 설정
dClockSetting 메소드
private void dClockSetting()
{//디지털 시계 세팅
fDate = new Font("맑은 고딕",12,FontStyle.Bold);
fTime = new Font("맑은 고딕", 32, FontStyle.Bold|FontStyle.Italic);
bDate = Brushes.SkyBlue;
bTime = Brushes.Blue;
}
디지털 시계의 폰트,글자색상 등등 설정
timerSetting 메소드
private void timerSetting()
{//시계설정
Timer t = new Timer();
t.Enabled = true;
t.Interval = 1000;
t.Tick += T_tick;
}
시계 설정
저번주차에 해서 생략
Timer1_Tick 메소드
private void T_tick(object sender, EventArgs e)
{
DateTime c = DateTime.Now;
panel1.Refresh();
현재시각 c 에 불러오고
panel1 새로고침
if(aClockFlag == true){//아날로그라면?
DrawClockFace();
double radHr = (c.Hour % 12 + c.Minute / 60.0) * 30 * Math.PI / 180;
double radMin = (c.Minute + c.Second / 60.0) * 60.0 * 6 * Math.PI / 180;
double radSec = c.Second * 6 * Math.PI / 180;
DrawHands(radHr, radMin, radSec);
}
시계판을 그린후
시침 분침 초침을 초를 기준으로 만든후
바늘을 그려준다
else {//디지털이라면?
string date = DateTime.Today.ToString("D");
string time = string.Format("{0:D2}:{1:D2}:{2:D2}", c.Hour, c.Minute, c.Second);
g.DrawString(date, fDate, bDate, new Point(10, 70));
g.DrawString(time, fDate, bTime, new Point(10, 100));
}
}
오늘의 날짜를 글자로 "D"(자세한 날짜)로 도출하고
지금 시간 도출후
위치를 설정
DrawClockFace 메소드
private void DrawClockFace()
{
const int penWidth = 30;
Pen p = new Pen(Brushes.LightSteelBlue,penWidth);
g.DrawEllipse(p, penWidth / 2, penWidth / 2, clockSize - penWidth, clockSize - penWidth);
}
펜의 굵기는 30
Pen p는 밝은 파란색이며
원을 그려준다
DrawHands 메소드
private void DrawHands(double radHr, double radMin, double radSec)
{
}
